Expansion Mandrel Expansion Mandrel
type LEG - GIG type LEG - GIG
DEPLIANT DEPLIANT

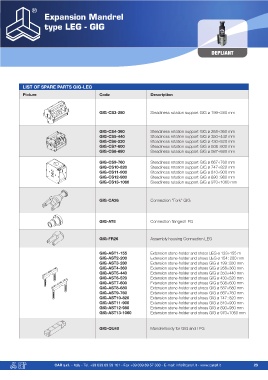

LIST OF SPARE PARTS GIG-LEG
Picture Code Description
GIG-CS3-280 Steadiness rotation support GIG ø 199÷280 mm
GIG-CS4-360 Steadiness rotation support GIG ø 268÷360 mm
GIG-CS5-440 Steadiness rotation support GIG ø 350÷440 mm
GIG-CS6-520 Steadiness rotation support GIG ø 430÷520 mm
GIG-CS7-600 Steadiness rotation support GIG ø 508÷600 mm
GIG-CS8-680 Steadiness rotation support GIG ø 587÷680 mm
GIG-CS9-760 Steadiness rotation support GIG ø 667÷760 mm
GIG-CS10-820 Steadiness rotation support GIG ø 747÷820 mm
GIG-CS11-900 Steadiness rotation support GIG ø 810÷900 mm
GIG-CS12-980 Steadiness rotation support GIG ø 890÷980 mm
GIG-CS13-1060 Steadiness rotation support GIG ø 970÷1060 mm
GIG-CA26 Connection “Fork” GIG
GIG-AT8 Connection flanged LEG
GIG-FR26 Assembly housing Connection LEG
GIG-AST1-155 Extension stone-holder and shoes LEG ø 133÷155 m
GIG-AST2-200 Extension stone-holder and shoes LEG ø 154÷200 mm
GIG-AST3-280 Extension stone-holder and shoes GIG ø 199÷280 mm
GIG-AST4-360 Extension stone-holder and shoes GIG ø 268÷360 mm
GIG-AST5-440 Extension stone-holder and shoes GIG ø 350÷440 mm
GIG-AST6-520 Extension stone-holder and shoes GIG ø 430÷520 mm
GIG-AST7-600 Extension stone-holder and shoes GIG ø 508÷600 mm
GIG-AST8-680 Extension stone-holder and shoes GIG ø 587÷680 mm
GIG-AST9-760 Extension stone-holder and shoes GIG ø 667÷760 mm
GIG-AST10-820 Extension stone-holder and shoes GIG ø 747÷820 mm
GIG-AST11-900 Extension stone-holder and shoes GIG ø 810÷900 mm
GIG-AST12-980 Extension stone-holder and shoes GIG ø 890÷980 mm
GIG-AST13-1060 Extension stone-holder and shoes GIG ø 970÷1060 mm
GIG-QU40 Mandrel body for GIG and LEG
